The M50 series protective mask consisting of the M50 and M51 variants, officially known as the Joint Service General Protective Mask is a lightweight, protective mask system consisting of the mask, a mask carrier, and additional accessories. The mask was designed to incorporate state-of-the-art technologies to protect United States Armed Forces and allied forces from current and anticipated CBRN threats. It is an above-the-neck, chemical-biological respirator that protects against battlefield co. CHEMICAL-BIOLOGICAL MASK: FIELD M40 IAW TM 3-4240-339-10 CHEMICAL-BIOLOGICAL MASK: FIELD M40 CHARACTERISTICS CAPABILITIES FEATURES PMCS BATTLE DRESS OVERGARMENTS CHARACTERISTICS LIGHTWEIGHT TRANSPORTED AND STORED IN CARRIER FACEPIECE IS MADE OF SILICONE RUBBER WITH INTURNED SEALING SURFACE SO IT CAN FORM A SEAL ON YOUR FACE SECOND SKIN FOR.
| M40 field protective mask | |
|---|---|
A soldier from the 70th Brigade Support Battalion, 210th Fires Brigade, 2nd Infantry Division wears the M40 during a NBC exercise in South Korea. | |
| Type | Gas mask |
| Place of origin | United States |
| Service history | |
| In service | 1990s–Present (U.S. military) |
| Used by | See Users |
| Production history | |
| Designed | 1980s |
The M40 field protective mask is one of various gas masks used by the United States Armed Forces and its allies to protect from field concentrations of chemical and biological agents, along with radiological fallout particles. It is not effective in an oxygen deficient environment or against ammonia.
- 3Users
History[edit]
The M40 was the result of a program in the 1980s to develop a successor to the M17-series protective masks which had been in service with the US armed forces since 1959. The M40 was to be a return to conventional gas mask design with an external side-mounted filter canister, rather than the internal cheek filters of the M17, which were awkward to change, especially in a contaminated environment. The final prototype, the XM40, was approved for service and then designated the M40.
The M40 was phased into service with the U.S. Army and Marine Corps in the mid-1990s, with another new design, the MCU-2/P also replacing the older M17 in service with the U.S. Air Force and Navy. However, both masks suffered from the inadequate protective capabilities of their face pieces, which was of a silicone rubber susceptible to corrosion from blister agents.[citation needed] Thus, the masks were effectively ill-suited for protecting against much more than riot control agents, and a butyl rubber 'second skin' had to be quickly issued for fitting over and reinforcing the M40 facepiece to make it effective in its intended role.
The M42 series masks are a variant of this mask with alterations that make it better suited for use by armored vehicle crews, who have to connect their masks to and draw air from their vehicle's own filtration system.
The M40 field protective mask is currently being replaced by the M50 joint service general purpose mask.[1][2]
On September 2, 2017, the Philippine Marine Corps received 1,000 M40 gas masks and C2 filters through the U.S. Embassy's Mutual Logistics Support Agreement program.[3]
Design[edit]
The M40 field protective mask features three voicemitters, one on either the right or left side, and one in front. A voicecom adapter may be placed over the front voicemitter to amplify the user's voice. The mask can be adjusted in the field to accept the filtering canister on either side, so that a weapon may be shouldered. Right-handed shooters will normally locate the canister on the left side of the mask and vice versa.
M50 Gas Mask Tm Army
The C2 canister on the M40 mask can protect the user from up to 15 nerve, choking, and blister agent attacks, and two blood agent attacks.

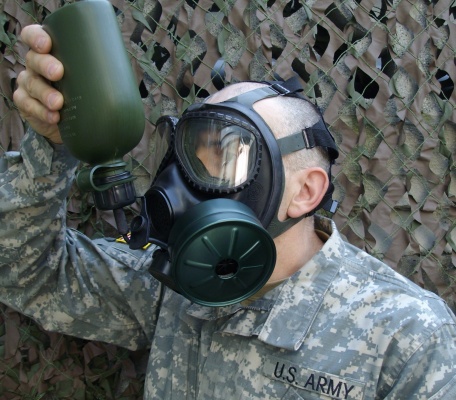

The M40 comes with a drinking system that allows the user to drink water after donning the mask for long periods of time in a chemically contaminated environment. In order to use the drinking system the user must also have suitably equipped canteen lids or an adapter for other containers.
Users[edit]
Current[edit]
Army Gas Mask M50 Pmcs Powerpoint Maker
- Philippines: In service with the Philippine Marine Corps, supplied from the Joint U.S. Military Assistance Group.[4][3]
Former[edit]
- United States: Replaced by the M50 joint service general purpose mask.[5]
References[edit]
This article incorporates public domain material from websites or documents of the United States Marine Corps.
- ^American Horse, LCpl Vanessa M. (12/2/2009). 'M50: New Look Same Protection'. United States Marine Corps. Archived from the original on 9 March 2010. Retrieved 22 December 2009.Check date values in:
date=(help) - ^Sanborn, James K. (June 2, 2010). 'Marine Corps fielding new gas mask'. Marine Corps Times. Archived from the original on 9 June 2010. Retrieved 2 June 2010.
- ^ abhttps://ph.usembassy.gov/us-transfers-m40-field-protective-masks-afp-support-counterterrorism-operations/
- ^http://news.abs-cbn.com/news/09/02/17/us-turns-over-1000-gas-masks-to-ph-military
- ^Military.com: New Gas Mask on the Way
| Wikimedia Commons has media related to M40 Field Protective Mask. |
